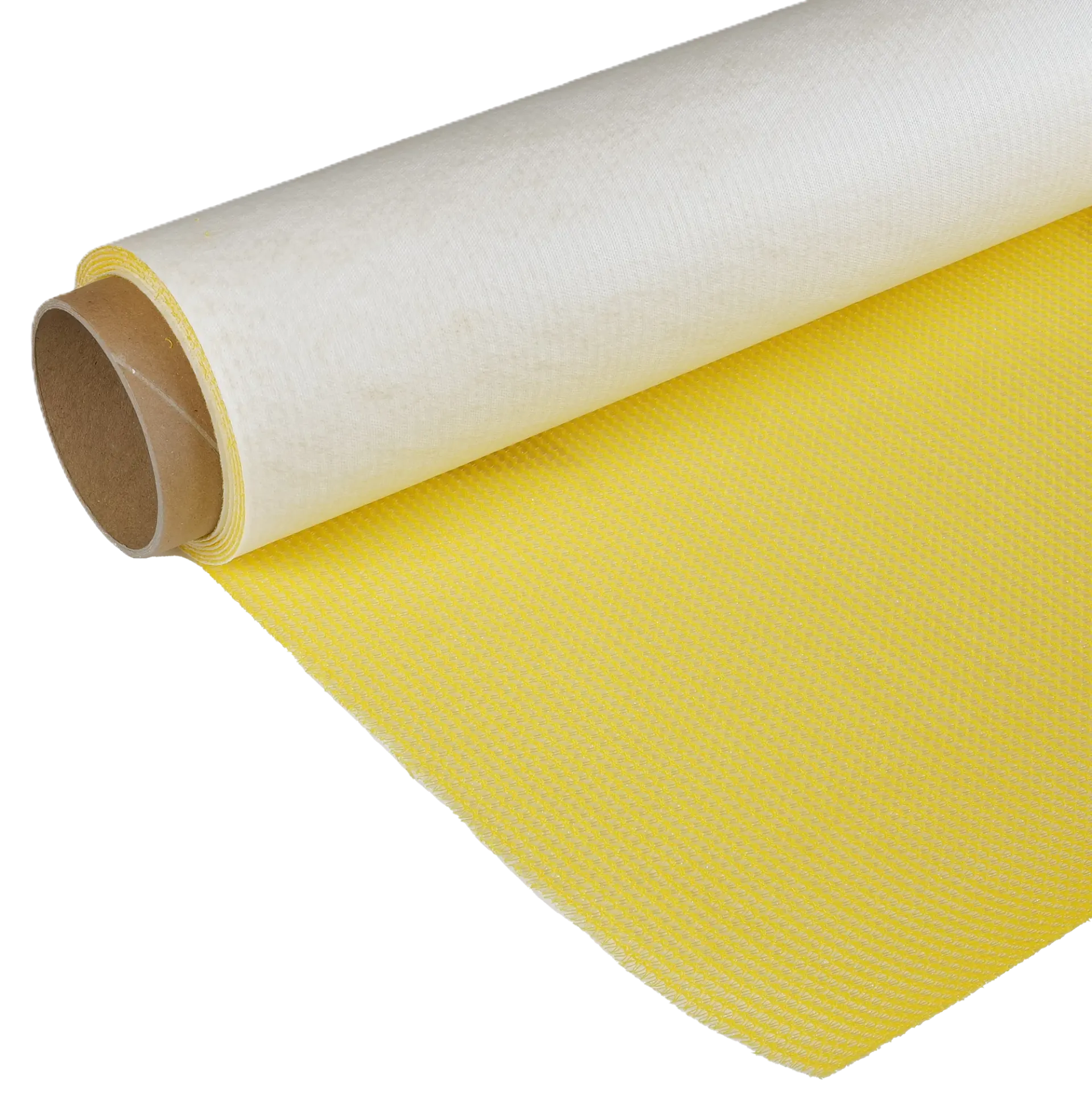

Compoflex® SB 250 is a combined peel ply, perforated release film, and breather/bleeder fabric designed to control resin flow and facilitate the release of consumables from composite laminates during processing.
The material produces a highly textured, rough surface finish that is ideal for secondary bonding operations or painting composite laminates without extensive surface preparation.
Compoflex® SB 250 can significantly reduce or eliminate the need for sanding or abrasion prior to bonding or coating. While optimum results are typically achieved with epoxy resin systems, testing is recommended before use in production applications.
The integrated release film features a perforation pattern designed to provide low to medium bleed characteristics, helping to control resin flow during cure.
Features & Benefits
Combines peel ply, release film, and breather/bleeder in a single product
Produces a highly textured surface suitable for secondary bonding and painting
Can reduce or eliminate sanding and surface preparation requirements
Low to medium resin bleed characteristics
Simplifies composite lay-up and vacuum bagging operations
Helps improve process efficiency and consistency
Breather/Bleeder Characteristics
Medium-weight breather fabric
Basis weight: 150 g/m² (5 oz/yd²)
Ideal for low-pressure curing processes
Can also be used as a drainage medium under any pressure conditions
Resin Compatibility
Suitable for use with a wide range of thermosetting resin systems, including:
Typical Applications
Vacuum bagging processes
Composite laminate manufacturing
Secondary bonding preparation
Composite painting preparation
Resin bleed and flow control
Aerospace, marine, automotive, and industrial composite applications
